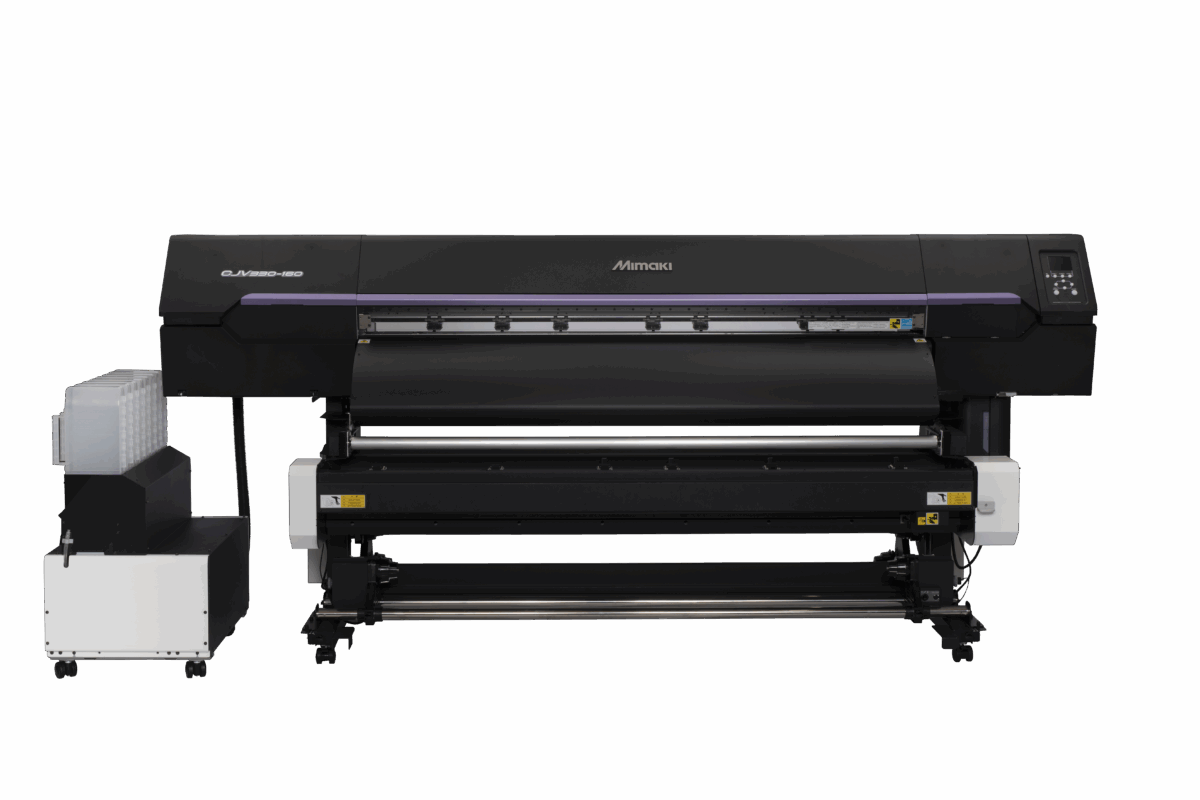

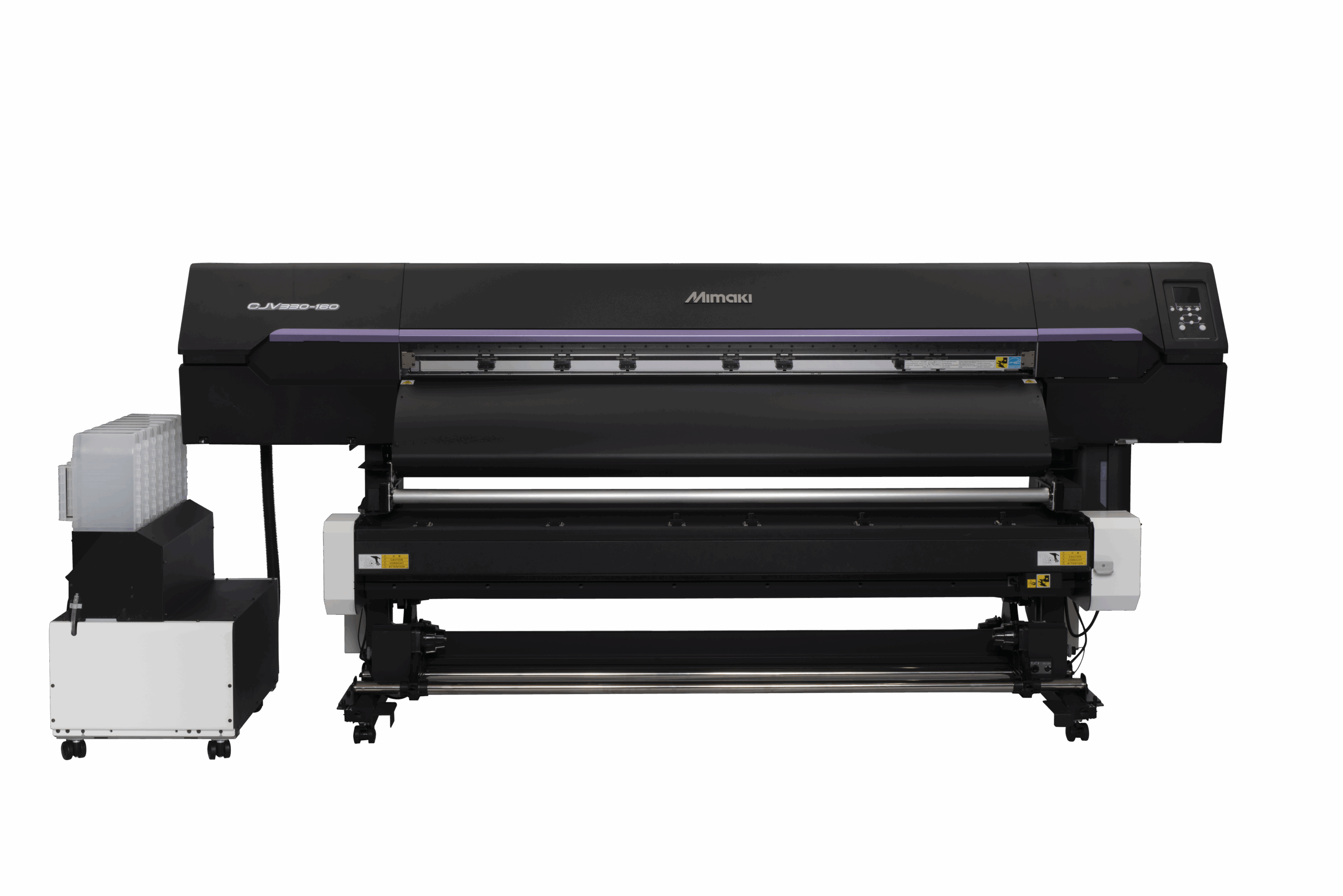

CJV330 64″ prnter without Slitters

$19,000.00

Commercial Print and Cut Capabilities

Compatible with Mimaki Original Eco-Solvent inks this print & cut device offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, decals, posters, and more for internal and external use. Your investment is now protected with a 3-year warranty, *One year Manufacturer’s Warranty, Two years Mimaki Parts Plus+ Warranty. Mimaki Eco-solvent inks are now compatible with the 3M™ MCS™ Warranty. Customers will be able to receive the 3M™ MCS™ Warranty Program certification – the most comprehensive warranty in the graphics industry – with **JV/CJV330 printers combined with SS21 or BS4 inks, which boast the best weather resistance in the industry.
  • Multiple media roll handling unit
  • Optional Integrated XY Slitter
  • In machine lighting
  • V-shaped cut function
  • Mimaki Remote Access
  • 2 staggered heads (6400 nozzles)

Our Core Technologies


Uninterrupted Ink Supply System (UISS)


Variable Dot Technology


Mimaki Bulk Ink System (MBIS)


Mimaki Intelligent Heaters (MIH)


Mimaki Advanced Pass System (MAPS)

SKU: CJV330-160-NS Category:
Description

CVJ330-160 Brochure

Specifications

PrintheadOn-demand piezo head (2 staggered printheads)
Print Resolutions600dpi, 800 dpi, 900dpi, 1200dpi
Print Speed (4 Color Mode)up to 1076.4 SqFt/Hr (100.00 m2/h)
Maximum Print Area53.5″ (1360 mm) | 63.4″ (1610 mm)
Maximum media width53.9″ (1370 mm) | 63.8″ (1620 mm)
Maximum Media Thicknessup to 0.04″ (1.0 mm)
Maximum Media Weight

One roll:Max. 45 kg (99.2 lb) or less
Three rolls:Total 90 kg (198.4 lb) or less

Ink TypeEco-solvent ink
SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)
InterfaceEthernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Power SupplyMain unit:(Single phase AC100-120/200-240V±10%, 50/60Hz±1Hz) ×2
Power ConsumptionMax. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
Operational EnvironmentTemperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W × D × H)

2,920 × 1,215 × 1,305 mm (115.0 x 47.8 x 51.4″) |

3,170 × 1,215 × 1,305 mm (124.8 x 47.8 x 51.4″)

Weight

363 kg (800.3 lb) | 373 kg (822.3 lb)

CertificationsVCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA
Cutting SpeedMax. 300 mm/s
Warranty Information**The Mimaki Total Care warranty covers any defects in material and workmanship arising from the normal use of the product. Mimaki Total Care includes priority phone support and on-site services with labor and parts. Mimaki Parts Plus+ includes parts and phone support, with billable labor and travel expenses.

For the C/JV330, the warranty is Mimaki Total Care for year one on the full device including labor. Years two and three are Mimaki Parts Plus+ covering all non-consumable parts. All three years cover print heads. This warranty is available for products shipped to customers in the United States and Canada.

Warranty Information****Using Mimaki SS21 or BS4 inks. See details for eligibility.

Inks

Solvent Ink (SS21)CyanMagentaYellowBlackLight CyanLight MagentaOrangeBlackWhite (500mL)
2L Ink PackSPC-0588CSPC-0588MSPC-0588YSPC-0588KSPC-0588LCSPC-0588LMSPC-0588ORSPC-0588LKSS21-W-50
Additional information
Weight 781 lbs
Dimensions 115 × 48 × 52 in
Brand

Mimaki
