Summa F3232 Flatbed Cutter (128″ x 126″)
Specifications
Our teams are happy to advise you on a model that suits your business best.
| MODELS: | F1612
|
F1625
|
F1432Â
|
F1832
|
F3220
|
F3232
|
| CUTTING AREA | 63 in. (160 cm) wide x 47 in. (120 cm) long; up to 164 ft. (50 m) long in multi-panel | 63 in. (160 cm) wide x 98 in. (250 cm) long; up to 164 ft. (50 m) long in multi-panel | 53 in. (136 cm) wide x 126 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel | 72 in. (184 cm) wide x 126 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel | 128.7 in. (327 cm) wide x 82.6 in. (210 cm) long; up to 164 ft. (50 m) long in multi-panel | 128.7 in. (327 cm) wide x 130.7 in. (320 cm) long; up to 164 ft. (50 m) long in multi-panel |
| MEDIA WIDTH | Up to 64 in. (165 cm) | Up to 64 in. (165 cm) | Up to 56 in. (142 cm) | Up to 74 in. (190 cm) | Up to 130 in. (332 cm) | Up to 130 in. (332 cm) |
| MULTI PANEL* | 1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required |
|||||
| REPEATABILITY | Within ± 0.05 mm on plots | |||||
| ACCURACY | 0.05 % of move or 0.05 mm, whichever is greater | |||||
| SPEED | Up to 39 in./sec (1000 mm/sec) | |||||
| ACCELERATION | Up to 1 G | |||||
| CLEARANCE* | 1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting mat or conveyor belt |
|||||
| MAXIMUM ALLOWED FORCES | Vertical: 200 Newton, Horizontal: 200 Newton | |||||
| MAXIMUM TABLE LOAD | 10 lb/ft2 (50 kg/m²) | |||||
| CONNECTIVITY | USB | |||||
| POWER REQUIREMENTS | 3 phase 208v + N + G | |||||
| DIMENSIONS | 97 x 86 x 43 in. (247 x 220 x 110 cm) |
97 x 131 x 43 in. (247 x 333 x 110 cm) |
91 x 166 x 48 in. (230 x 422 x 122 cm) |
110 x 166 x 48 in. (279 x 422 x 122 cm) |
166 x 123 x 48 in. (422 x 313 x 122 cm) |
166 x 166 x 48 in. (422 x 422 x 122 cm) |
| WEIGHT | 1100 lbs (500 kg) | TBD | TBD | 3375 lbs (1530 kg) | 1760 kg (3883 lbs) | 1974 kg (4347 lbs) |
| OPERATING TEMPERATURE | 59Ëš to 95ËšF (15Ëš to 35ËšC) | |||||
| STANDARD ACCESSORIES | Drag Module, Conveyor System, Roll-Feed System, Safety System 2020, Pneumatic Pack, ADC left&right, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), Summa GoProduce software. | |||||
| OPTIONAL ACCESSORIES | Tangential Module, F Series Routing System, HF Routing System, HT Rotary module, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, production software, basket (F1612), extension tables (F1612), wireless controller w/charger. | |||||
Would you like to see more of the F Series? Contact us for a demo!
Summa F3232 Cutting Table
Summa F3232-31: Power Up Your Wide-Format Finishing
Experience the speed, precision, and versatility of wide-format finishing with the Summa F3232-31.
This flatbed plotter delivers remarkable efficiency, impressive cutting capabilities, and user-friendly operation, empowering you to tackle high-volume projects with confidence and ease.
From textiles and vinyl to cardboard and foam, handle diverse materials and achieve clean, intricate cuts with exceptional quality.
Summa F3220 Cutting Table
Summa F3220: Powering Your Wide-Format Finishing Workflow
Experience the precision and efficiency of wide-format cutting with the Summa F3220.
This flatbed plotter delivers impressive cutting speed, diverse material handling, and user-friendly operation, empowering you to tackle high-volume projects with confidence.
From intricate textile cuts to precise signage production, achieve flawless results while maximizing your output.
Summa F1432 Flatbed Plotter
Summa F1432: Precision Cutting, Unbound Creativity
Go beyond limitations with the Summa F1432 Flatbed Cutting System.
This powerful tool delivers on material diversity, production efficiency, and user-friendly operation, empowering you to bring your creative ideas to life with confidence.
Handle delicate textiles, produce rigid signs, and prototype with intricate details – all while maximizing your output and enjoying a comfortable work experience.

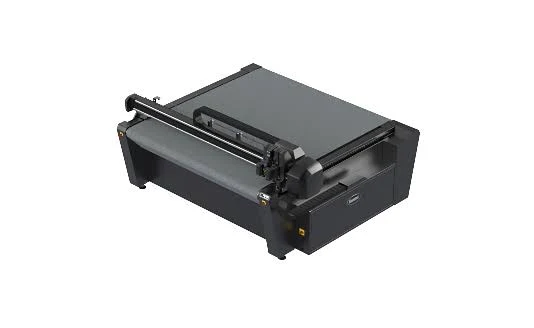

Summa F1612 Vantage 63 x 47 Flatbed Cutter Single Phase
Now available exclusively in the U.S., this new model addresses a significant need in the market by offering the same power and capabilities as the original F1612, but with a single-phase connection, making it accessible to a wider range of businesses.
Full performance for small footprints.
The Summa F1612 Vantage sits at the heart of compact production floors. Where space is limited but expectations aren’t, it delivers the control, accuracy, and ease of use of the F Series Vantage in its most space efficient form.
Open by design
Your workflow is unique. Your tools, your RIPs, your printers, your automation partners; they were chosen for a reason. The Summa F1612 Vantage respects that. It fits into the environment you already trust, without lock-ins or hidden constraints.
We don’t create switching costs, no matter the setup. The platform connects to any printer, any RIP (with more than 50 supported), and any finishing or handling solution you rely on today.
We are open and will never push any third party onto you. If it’s in your workflow, we intend to integrate with it. Ethernet connectivity ensures you can place the machine and workstation where your production needs them, even in controlled clean room spaces.
Everything about the Summa ecosystem is built to work with you, not confine you. A system that integrates smoothly becomes a system you can grow with.

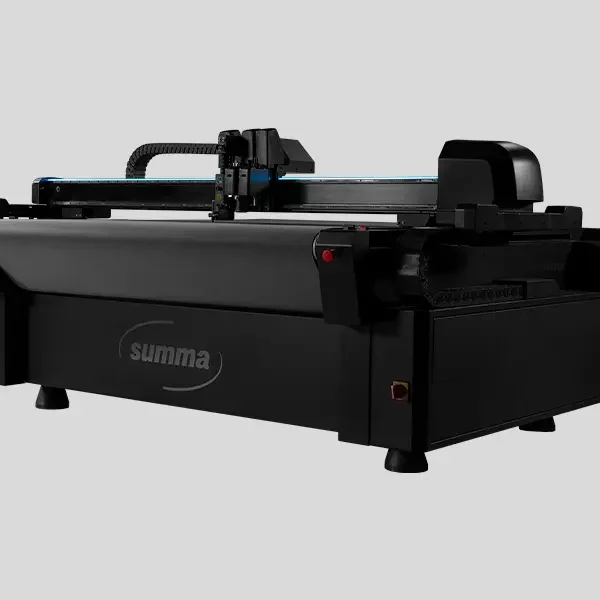

Summa F1612 Vantage 63 x 47 Flatbed Cutter 3 Phase
Full performance for small footprints.
The F1612 Vantage sits at the heart of compact production floors. Where space is limited but expectations aren’t, it delivers the control, accuracy, and ease of use of the F Series Vantage in its most space efficient form.
Open by design
Your workflow is unique. Your tools, your RIPs, your printers, your automation partners; they were chosen for a reason. The F1612 Vantage respects that. It fits into the environment you already trust, without lock-ins or hidden constraints.
We don’t create switching costs, no matter the setup. The platform connects to any printer, any RIP (with more than 50 supported), and any finishing or handling solution you rely on today.
We are open and will never push any third party onto you. If it’s in your workflow, we intend to integrate with it. Ethernet connectivity ensures you can place the machine and workstation where your production needs them, even in controlled clean room spaces.
Everything about the Summa ecosystem is built to work with you, not confine you. A system that integrates smoothly becomes a system you can grow with.
Summa SClass 3T Cutters
Download Brochsure  https://www.summa.com/media/szadsfyh/202501-roll-cutter-brochure-en-eu-web.pdf#
Â
Sign & Display
The Summa roll cutter series are designed to deliver a wide range of applications for the Sign & Display market. Achieve perfectly cut stickers, traffic signs, billboards, and so on, with the S Class 3 and S One roll cutters now and for many years to come!
The world of Sign and Display is broad and versatile. Summa vinyl cutting solutions can optimise your print & cut workflow, meet your customers’ deadlines, and deliver perfectly finished end-products.
- (One-off) Stickers
- Labels
- Window Stickers
- Vehicle lettering and graphics
- Window lettering
- Flock/Flex templates
- Intricate small letters/designs
- Technical textiles
