Mimaki Direct to Film Printer
$21,995.00
Mimaki DTF (Direct To Film) Printer

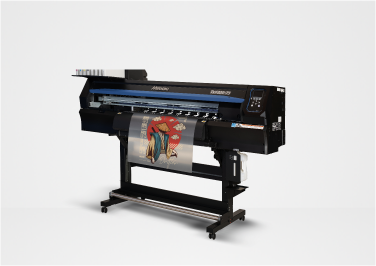

The new Mimaki TxF300-1600 takes direct-to-film to another level with the ability to print up to 63” rolls. Embodying the same core functionalities as the industry leading TxF300-75 model, the new TxF300-1600 increases both versatility and throughput without the added parts complexity and maintenance required with additional printheads. The TxF300-1600 further sets Mimaki apart as a leader in textile and apparel printing solutions. Integral features for seamless operations include:
- Easily produce indoor and outdoor prints on a large selection of media with ‘one printer to do it all’ versatility in a small footprint.
- Enjoy outstanding quality and productivity, plus the industry’s best outdoor durability, all at an attractive price point.
- A complete print & cut device with integrated software and a range of ink choices to print a wide range of applications.
- Easy to use with included RIP software that offers extreme accuracy when creating instant decals and large wall graphics.
- Outstanding quality and productivity at an attractive price point
- Mimaki Core Technologies deliver exceptional results, economically, and with maximum productivity.
- Select from three model widths to suit your production needs.
Description
Specifications
| Printhead | Dual On-demand piezo heads |
| Print resolution | 720dpi, 1,440dpi |
| Maximum Print Width | TxF300-75: 800mm (31.5″ in) TxF300-1600: 1610 mm (63.4 in) |
| Maximum media width | TxF300-75: 810mm (31.9 in) TxF300-1600: 1620 mm (63.8 in)
|
| Maximum Media Thickness | up to 0.04″ (1 mm) |
| Maximum Media Weight | Up to 99.2 pounds (45 kg) |
| Ink Type | Heat transfer pigment ink PHT50 (C,M,Y,K,W) |
| Interface | Ethernet 1000 BASE-T / USB2.0 |
| Power Supply | Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption | Txf300-75: 100V system: 1.44kW, 200V system: 1.92kW TxF300-1600: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1 |
| Operational Environment | Temperature: 68-86 F (20° – 30°C) Humidity: 35 – 65 % RH (Non condensing) |
| Dimensions (W × D × H) | TxF300-75: 1,965mm×700mm×1,392mm (77.4 x 27.6 x 54.8 in) TxF300-1600: 3,783mm x 2,700mm x 1,392mm (148.93 in W x 106.3 in D x 54.80 in H) |
| Weight | 126kg (277.8 lb) |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC |
Inks
| Thermal transfer pigment ink (PHT50) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 600ml | PHT50-C-60 | PHT50-M-60 | PHT50-Y-60 | PHT50-K-60 | |
| 500ml | PHT50-W-50 |
Additional information
| Weight | 278 lbs |
|---|---|
| Dimensions | 75 × 28 × 55 in |
| Brand |
Mimaki |
