Mimaki TS200-1600
$10,995.00
Next-Level Sublimation Starts Here

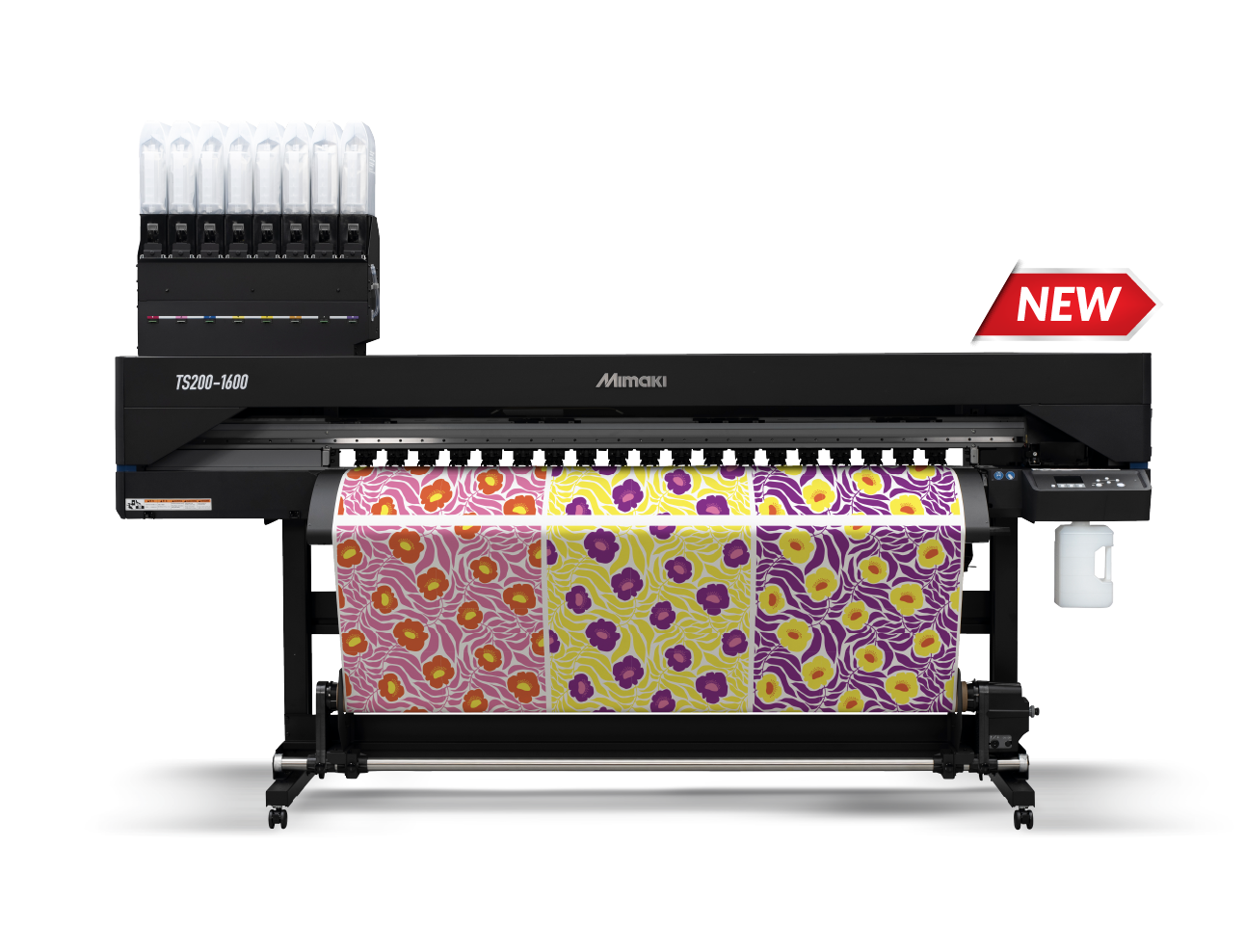

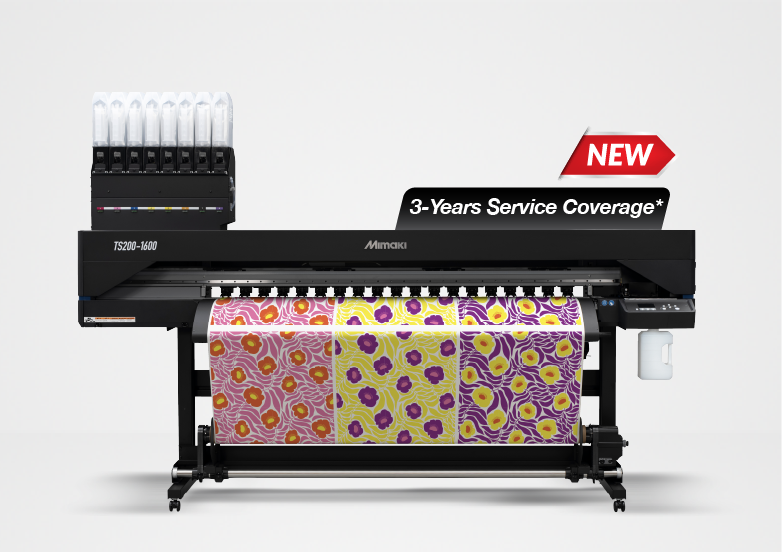

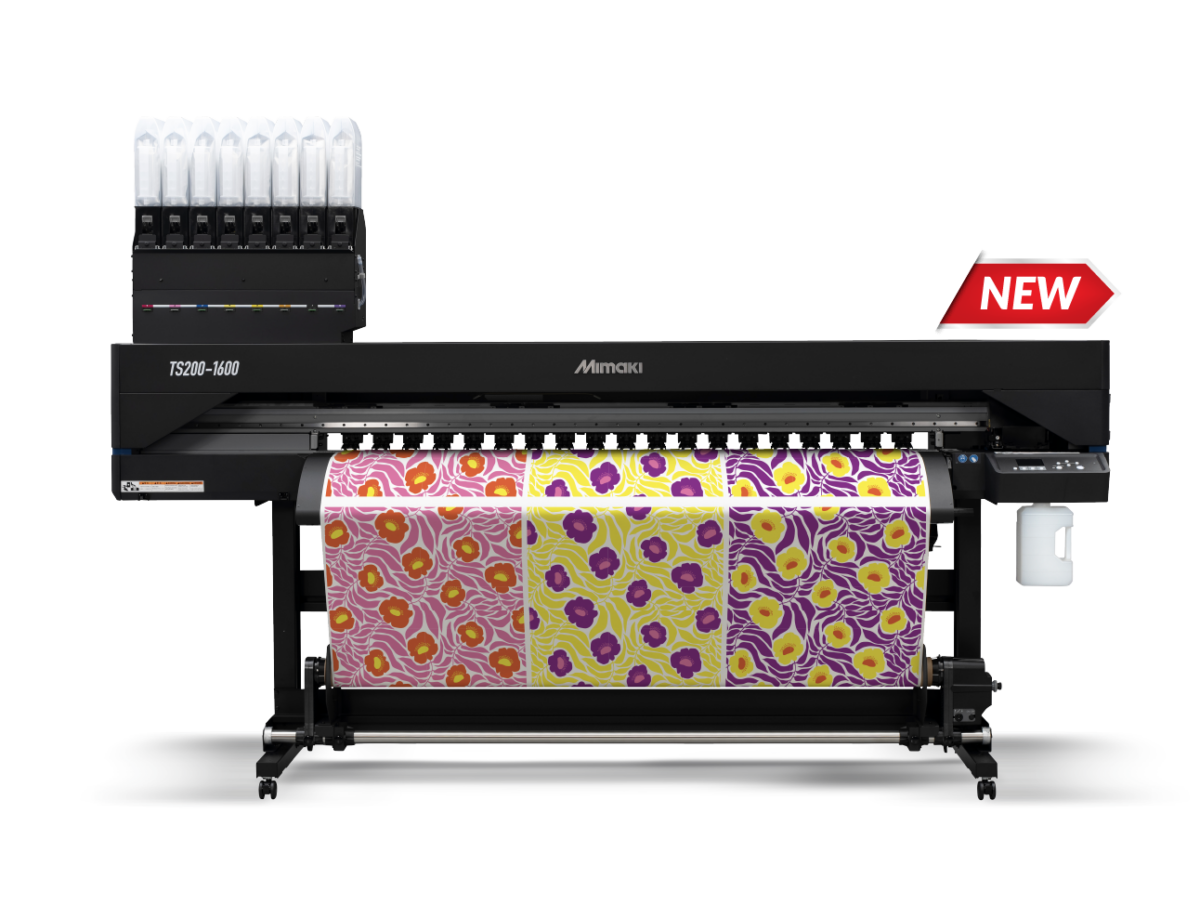

The Mimaki TS200-1600 is a next-generation 64-inch sublimation transfer printer that combines advanced imaging performance with ease of use. Built with the signature 330-series engine and a single high-density printhead, it delivers vivid, high-resolution output for textiles, sportswear, and interior applications. The TS200-1600 can be configured as a dual reservoir, 4-color ink set – or in an 8-color configuration, including orange, violet, fluorescent yellow, and fluorescent pink to offer enhanced vibrancy and creative flexibility. Designed for efficiency, the TS200-1600 features remote access capabilities, intuitive software, and maintenance-friendly design, making it ideal for high-volume, production-focused environments.
- 22% Larger 8c color gamut with new Violet & Orange inks, plus Fluorescent Pink & Yellow inks for additional visual impact.
- Reaches speeds up to 753.5 sqft/hr while maintaining excellent image quality and saturation.
- PICT Cloud-based data insights tracks and reports device operating status, metrics and ink consumption via computer, smartphone or tablet.
- Achieves fine detail and solid color coverage with high ink density and 4pl minimum drop size.
- Mimaki Remote Access (MRA) enables real-time operation and status checks from across a local Wi-Fi connection.
- In-RIP ink saving features reduce ink costs by as much as 50% depending on selected level.
- Includes automatic nozzle replacement, 2-Liter eco ink packs, and sensor based dot position adjustment and feed settings for no-hassle media setup.
Description
Mimaki TS200-1600 Brochure
Specifications
| Printhead | Single, on-demand, piezo print head
|
| Print resolution | Y:300,600,900 dpi | X:600 dpi
|
| Print speed (4 color mode) | 753.5 sqft/hr (70 sqm/hr) |
| Type/Color Sb411 | 4color: Bl M Y K 8color: Bl M Y K Vi Or Fy Fp |
| Maximum Print width | 63.3 inch (1610 mm)
|
| Maximum media width | 63.7 inch (1620 mm)
|
| Maximum Thickness | 0.039 inches (1.0 mm)
|
| Roll Weight | (a) 55.1 lb. (25.0 kg) (b) 99.2 lb. (45.0 kg) – with installation of a foot leveling kit (Opt-J0502)
|
| Ink Package Size | 2L ink pack |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC, UKCA
|
| Interface | Ethernet 1000BASE-T (Recommended), USB2.0 Hi-Speed
|
| Power Supply | AC100~120V/200~240V±10% 3A 50/60Hz±1Hz |
| Power Consumption | Max. 250W or less |
| Operational Environment | Temperature: 68˚ to 86˚ F (20˚ to 30˚ C) Humidity: 35% to 65%
|
| Dimensions (W × D × H) | 109 in x 29.4 in x 63.8 in (2770 mm x 748 mm x 1623 mm)
|
| Weight (uncrated) | 341.7 lbs. (155.0 kg)
|
Inks
| Dye Sublimation Ink (Sb411) | Blue | Magenta | Yellow | Black | Violet | Orange | Fluorescent Pink | Fluorescent Yellow |
|---|---|---|---|---|---|---|---|---|
| 2L ink pack | SB411-BLT-2L | SB411-MT-2L | SB411-YT-2L | SB411-KT-2L | SB411-VT-2L | SB411-ORT-2L | SB411-FPT-2L | SB411-FYT-2L |
Additional information
| Weight | 781 lbs |
|---|---|
| Dimensions | 115 × 48 × 52 in |
| Brand |
Mimaki |
