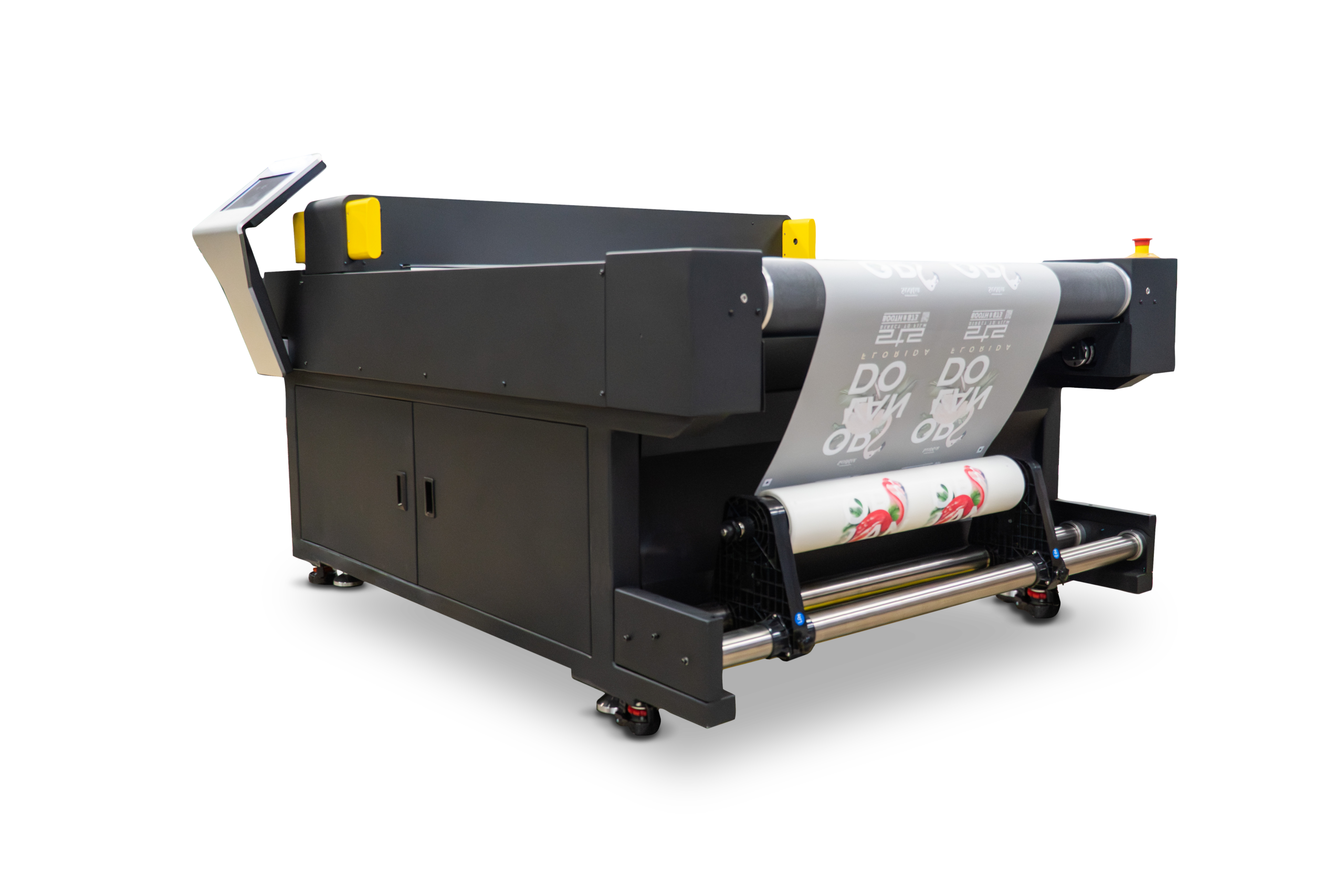

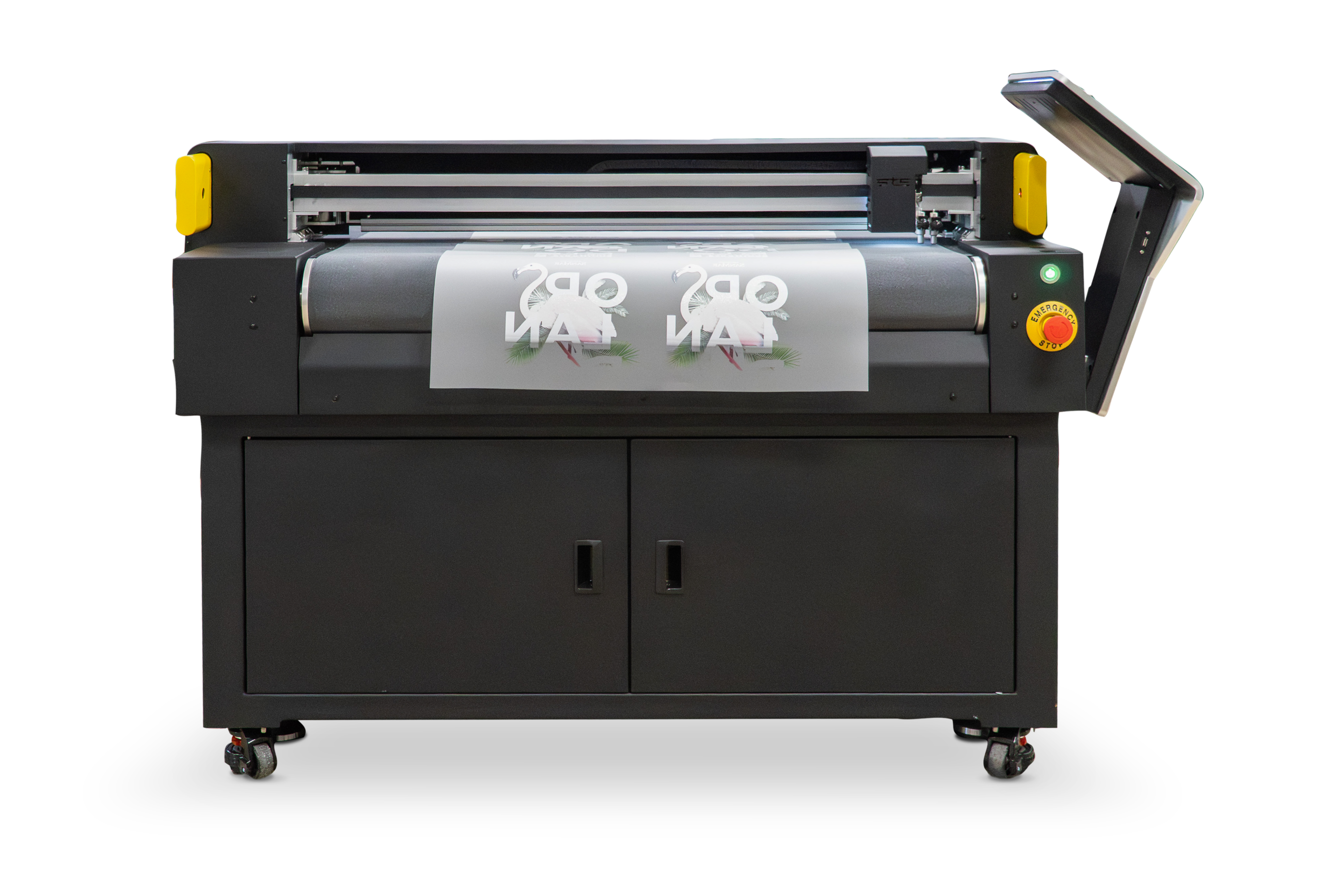

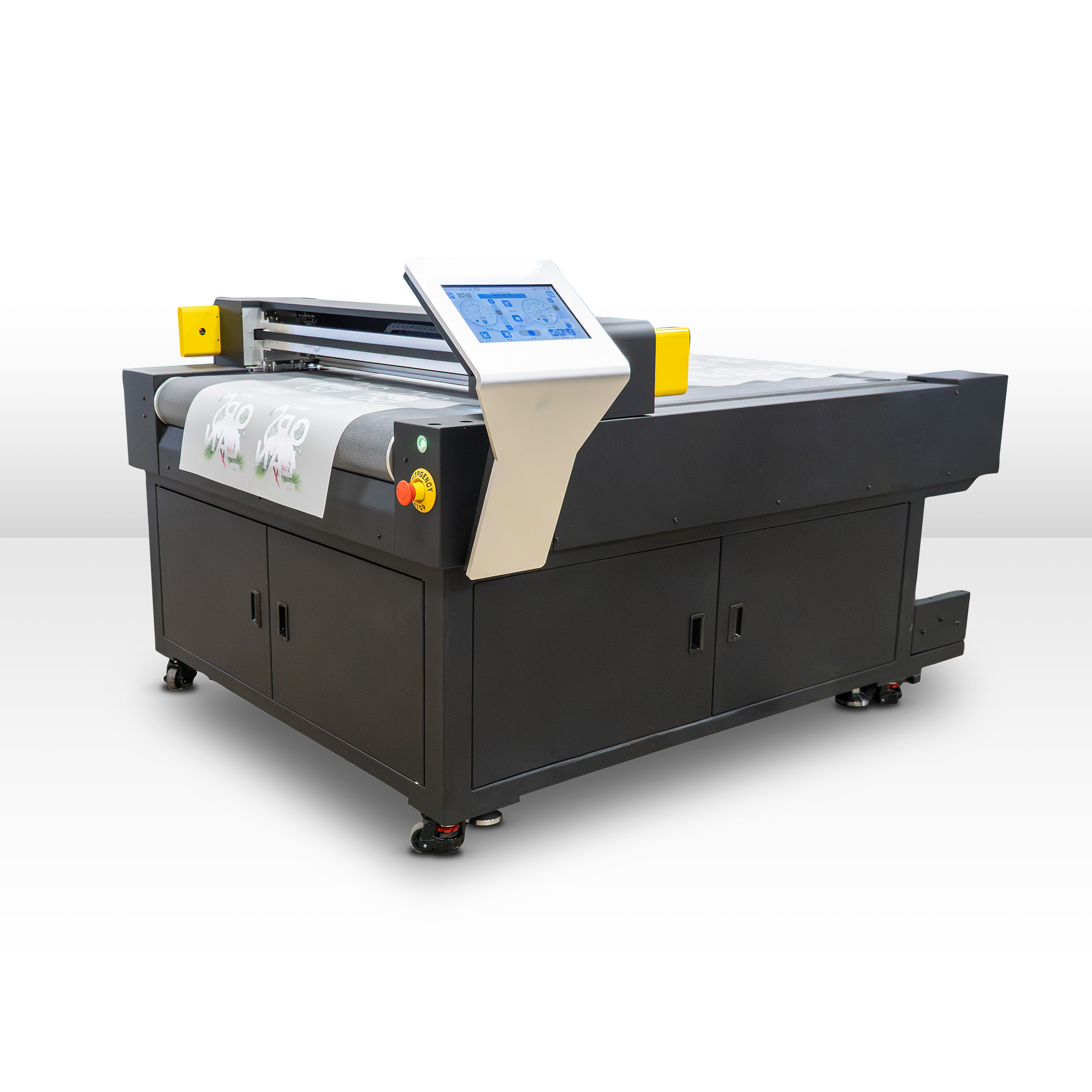

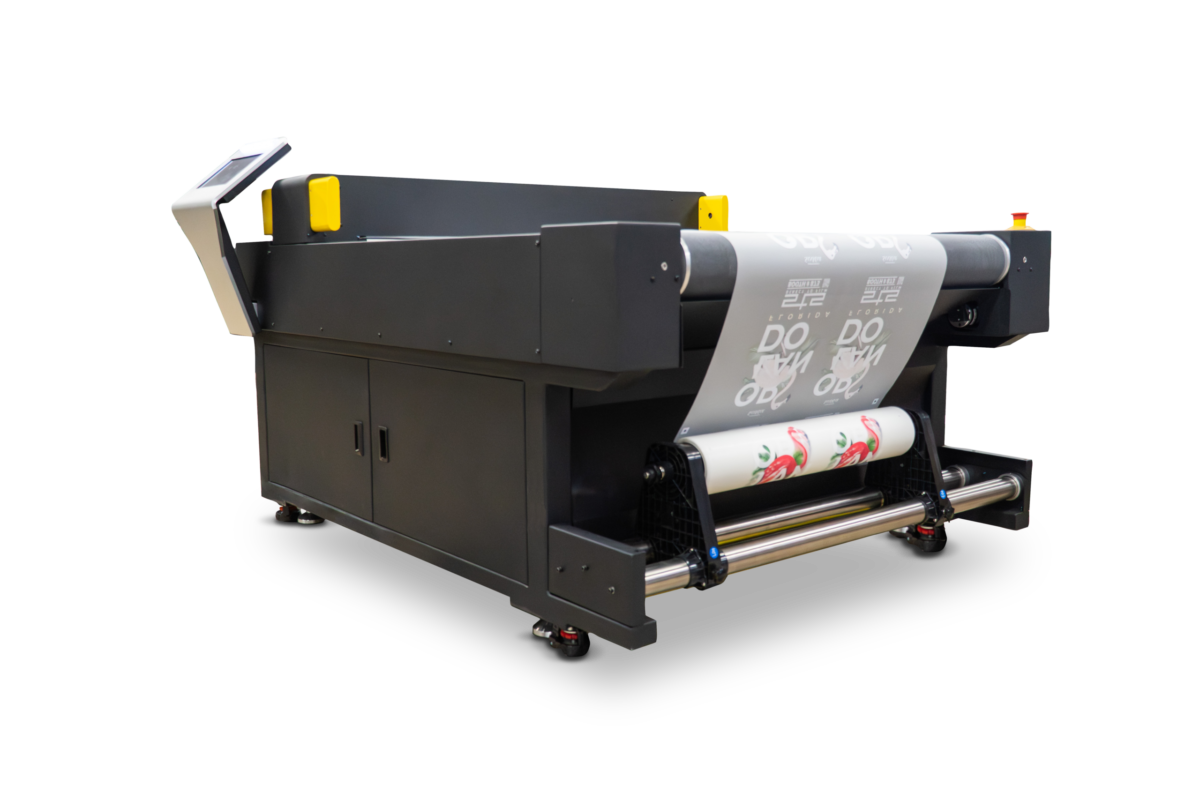

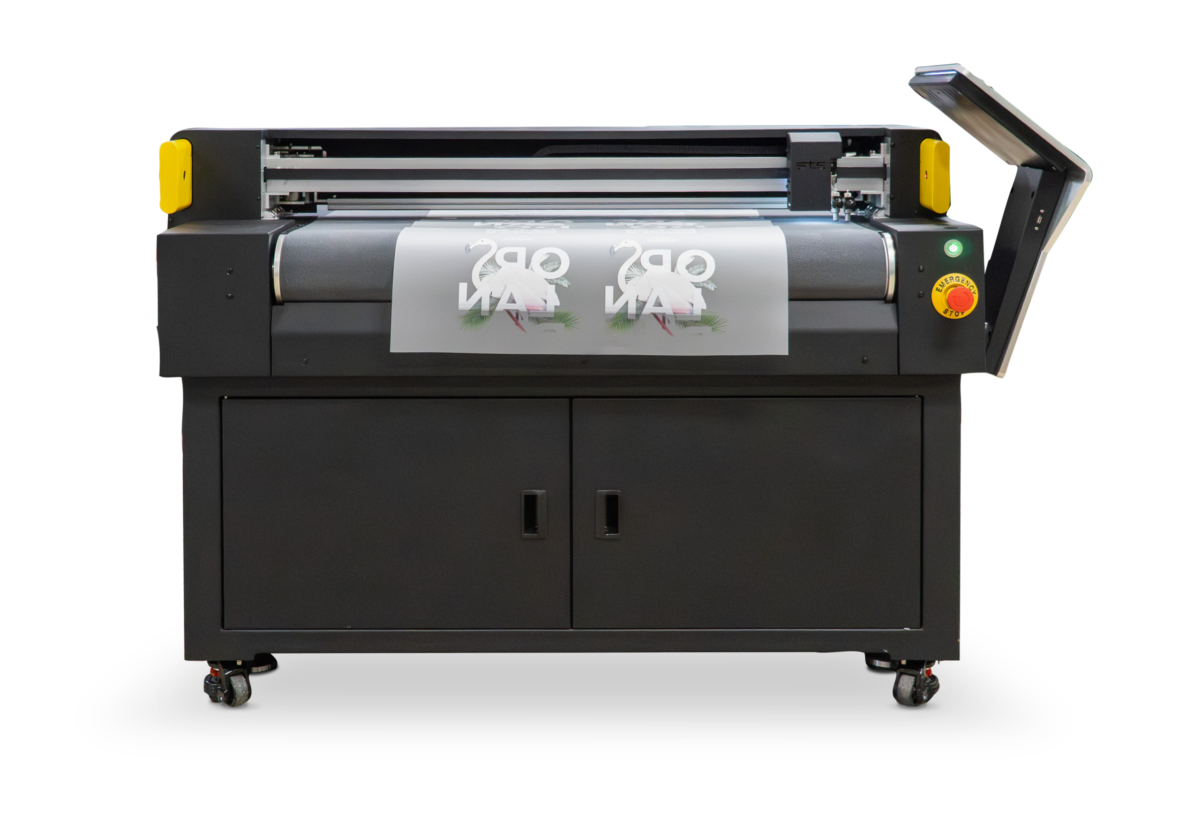

STS C3135 Flatbed Cutter Machine
$24,900.00
The STS C3135 flatbed cutter machine delivers precision contour cutting for professional post-print finishing environments. This digital cutting system transforms printed sheets into press-ready pieces with ±0.1mm accuracy, eliminating manual trimming errors and reducing substrate waste.
Thanks to its rigid flatbed construction, the STS C3135 flatbed cutter machine maintains substrate stability during high-speed cutting. Consequently, print shops achieve repeatable results across long production runs. In addition, seamless integration with popular RIP software allows teams to scale finishing operations without disrupting existing workflows.
Key Features of the STS C3135 Flatbed Cutter Machine
-
Precision contour and kiss-cut capability
-
±0.1mm cutting accuracy for exact registration
-
Vacuum hold-down system for material stability
-
Handles media up to 31″ × 35″
-
Compatible with vinyl, paper, cardstock, and textiles
-
Digital servo motors for smooth, controlled cut paths
-
Reduces manual finishing time by up to 75 percent
-
Tool-free blade changes in under 30 seconds
-
Built for 24/7 commercial production environments
Because finishing accuracy directly impacts profit margins, the STS C3135 flatbed cutter machine protects output quality while increasing production speed.
Why This Flatbed Cutter Machine Is Recommended
The STS C3135 flatbed cutter machine supports print shops that require precise, automated finishing after printing. Its flatbed design stabilizes substrates during operation; therefore, operators maintain accurate contours and clean edges without rework.
By automating contour cutting, the system reduces human error and standardizes output. Moreover, production facilities gain predictable turnaround times, which improves scheduling efficiency and client satisfaction.
For operations that prioritize consistency, repeatability, and scalable workflow integration, the STS C3135 provides a dependable finishing solution.
Why the Flatbed Cutter Machine Is Essential
Manual trimming introduces variability, misaligned edges, and wasted substrates. This flatbed cutter machine eliminates that bottleneck. Its vacuum hold-down system prevents material shifting, ensuring accurate contour registration even on flexible media such as vinyl and fabric.
Furthermore, automated cut path execution reduces finishing time from minutes to seconds. As a result, high-volume print shops increase throughput without adding labor. When paired with wide-format printers and professional RIP software, the STS C3135 supports a fully automated production workflow.
Frequently Asked Questions
Q: What is the primary function of the STS C3135 Flatbed Cutter Machine?
A: It performs precision contour cutting and finishing for printed materials in post-print workflows.
Q: Does it support digital contour paths from print files?
A: Yes, the system follows digital cut paths for accurate contour execution.
Q: Is it suitable for commercial production use?
A: Yes, the C3135 is engineered for continuous operation in professional environments.
Q: Does the flatbed design improve cutting precision?
A: Yes, the rigid flatbed stabilizes substrates and maintains registration accuracy.
Q: What workflows does this cutter support?
A: It integrates with digital printing environments that require precise finishing and trimming.
GENERAL DESCRIPTION
| MODEL NAME | STS C3135 Faltbed Cutter Machine |
| CUTTING CONTROL SYSTEM | High-power brushless servo motor |
| POSITIONING SENSOR TYPE | Digital Camera (CCD) |
| CONTROL PANEL | 10 inch capacitive touch screen |
| NUMBER OF TOOL HOLDERS | 1 tool holders |
| BLADE TYPES | Blade/ Pen/ Scoring Pen |
SOFTWARE AND COMPATIBILITY
| CONNECTIVITY | USB / LAN / WiFi / U disk |
| SOFTWARE AND COMPATIBILITY | Cut Software CutStudio / Coral Draw / illustrator Plug-In |
POWER AND WORKING ENVIRONMENT REQUIREMENTS
| WORKING VOLTAGE AND CURRENT | 110VAC ~ 120VAC – 50/60Hz – Maximum current 6.8A 220VAC ~ 240VAC – 50/60Hz – Maximum current 3.4A |
| WORKING POWER | Maximum 350W |
| VACUUM PUMP VOLTAGE AND CURRENT | 110VAC – 50Hz – Rated current 10.8A – 60Hz – Rated current 13A 220VAC – 50Hz – Rated current 4.5A – 60Hz – Rated current 5.6A |
| AIR PUMP VACUUM POWER | 110VAC – 50Hz – 0.75KW / 110VAC – 60Hz – 0.84KM 220VAC – 50Hz – 0.75KW / 220VAC – 60Hz – 0.83KM |
| OPERATION ENVIRONMENT | TEMPERATURE: +5°C to +35°C / 41°F – 95°F HUMIDITY: 30% – 75% RH (Non-Condensing) |
| BLADE TYPES | Blade/ Pen/ Scoring Pen |
DIMENSIONS AND WEIGHT
| ACTUAL DIMENSIONS | 1650x1130x1020mm | 64.96×44.49×40.49in (LxWxH) |
| PACKAGE DIMENSIONS | 1760x1450x620mm | 69.29×57.09×24.41in (LxWxH) |
| GN/NW | 276±5Kg/176±5Kg | 608.47±11.02lb/388.01±11.02lb |
MACHINE PERFOMANCE
| MAXIMUM PAPER WEIGHT | Up to 400g (Varies from different cutting materials) |
| SHEET FEEDING METHOD | Friction feed |
| MAXIMUM DIAMETER OF PAPER FEED ROLL | 200mm | 7.87in |
| MAXIMUM FEED ROLL WIDTH | 600mm | 23.62in |
| SHEET FEEDING SPEED | 100-600 |
| MAXIMUM CHARACTER CUTTING SIZE | About 10mm2 (Varies from contour patterns and medias) |
| INTERNAL STORAGE SPACE | Memory size: 128M | Function: For storing cutting files use |
| MECHANICAL RESOLUTION | 0.02m | 0.00079in |
| PROGRAMMABLE RESOLUTION | HPGL 0.025mm | HPGL 0.00984in |
| REPEAT PRECISION | ≤ 0.05mm | ≤ 0.00197in |
| CUTTING MEDIA TYPES | Hot Film / Sticker / Cardboard / etc. |
| MEDIA HOLD METHOD | Vacuum suction |
| SCANNING CODE TYPE | Mark or QR Code |
| MAXIMUM CUTTING SIZE | 900 x 800 mm | 35.43 x 31.50 in |
| SCANNING SPEED | About 5s |
| CUTTING SPEED | 10-700 mm/s | 0.39-27.6 in/s |
| CUTTING FORCE | 0-750 g | 0-1.65 lbs of force |
This parameter is subject to change without prior notice.
The company reserves the right of final interpretation.
| Weight | 781 lbs |
|---|---|
| Dimensions | 69.29 × 57.09 × 24.41 in |
| Brand | STS |
Only logged in customers who have purchased this product may leave a review.
You may also like…
STS XPD2 924D 24″ Ink
STS XPD2 500ml Ink: Production Ready Ink System for the STS 924D
STS XPD2 500ml Ink for 924D DTF printer is a dedicated cartridge system built exclusively for the new STS 924D Direct to Film printer. In a production environment, DTF printing demands stable ink performance and controlled delivery to maintain consistent output across daily runs. For this reason, the XPD2 cartridge system delivers predictable ink flow, strong color density, and reliable transfer results from job to job.
STS XPD2 DTF Cleaning Solution 500ml Cartridge – Long Store
STS XPD2 DTF Cleaning Solution 500ml, specially designed and formulated to pair perfectly with our new STS XPD-924D Direct to Film Printer offering excellent color gamut and outstanding durability.

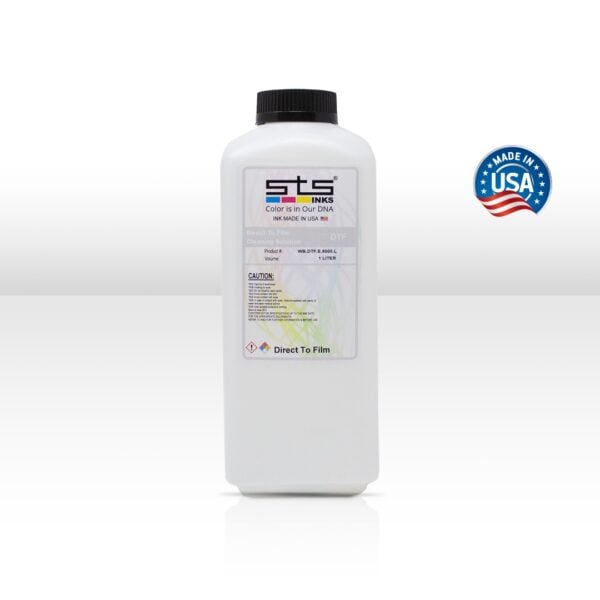

STS 1 Liter Bottle Cleaning Solution 1000ml DTF
STS 1 Liter Bottle Cleaning Solution for Direct to Film printers cleans ink lines, dampers, and printheads on DTF printers with STS SPD-924 and Epson printheads. It removes dried ink and residue that disrupt ink flow during production.
During daily operation, pigmented DTF inks dry inside internal ink paths. This buildup causes flow issues and clogged nozzles. This cleaning solution breaks down residue and restores smooth ink movement.
Additionally, the 1 liter bottle supports frequent maintenance schedules. Print operators use it regularly to reduce downtime and maintain consistent print output.
STS Grease KY-80050 for Wide Format Printer Carriage Systems

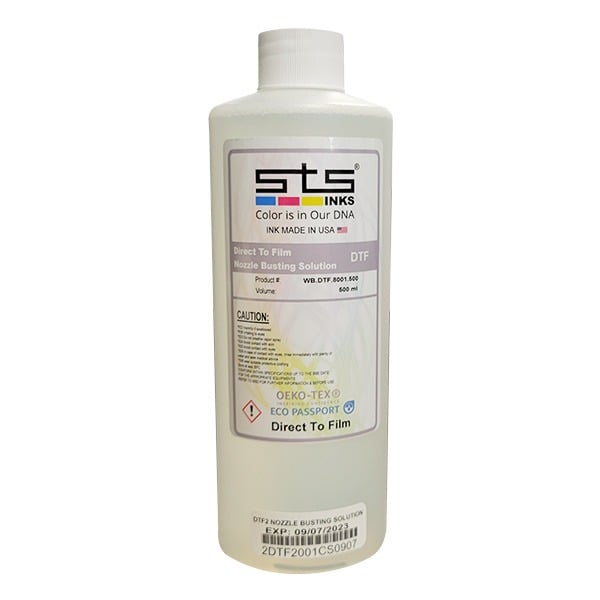

STS Nozzle Busting Solution 500ml for Direct to Film
