Compact, clean design — ultra small², sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
Easy printing right out of the box — comes equipped with software optimized for dye-sublimation, including specialized drivers for both Mac and Windows
Intuitive operation — large 4.3″ LCD color touchscreen simplifies print tasks
Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless

Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*

Eco Features

RoHS compliant
Recyclable product³
Epson America, Inc. is a SmartWay^™ Transport Partner⁴

Better Products for a Better Future™
For more information on Epson’s environmental programs, go to www.epson.com/environment

What’s in the box:

SureColor F570 Printer
Start Here Poster
User Guide
AC Power Cable

The complete, 24″ solution for fast, efficient dye-sublimation printing

Get fast, reliable dye-sub printing right out of the box with the 24″ SureColor F570. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows® and Mac®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

Astounding print quality — PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology
Get bright, brilliant images — vibrant ink delivers extraordinary color saturation and high contrast
Versatile media support — accommodates rolls and sheets up to 24″ wide; includes a 50-sheet auto-feed tray and built-in cutter for added efficiency
Replace ink less often — high-capacity ink bottles with auto-stop for easy, mess-free filling
Tackle a variety of print jobs — general-purpose transfer paper produces amazing images on both soft and rigid materials
Reliable performance — backed by Epson® world-class service and support¹
Compact, clean design — ultra small², sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
Easy printing right out of the box — comes equipped with software optimized for dye-sublimation, including specialized drivers for both Mac and Windows
Intuitive operation — large 4.3″ LCD color touchscreen simplifies print tasks
Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless

Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*

Print:

Printing Technology:PrecisionCore MicroTFP 4-channel, drop-on-demand printheadMaximum Print Resolution:2400 x 1200 dpiMinimum Ink Droplet Size:Variable Droplet Technology can produce up to three different sizes per lineNozzle Configuration:Color and monochrome heads; 800 nozzles x 4 channels

Ink:

Ink Type:Ink Bottles 140mLReplacement Ink:

Black Ink Bottle T49M120
Cyan Ink Bottle T49M220
Magenta Ink Bottle T49M320
Yellow Ink Bottle T49M420

General:

Operating Systems:macOS^® 10.13.x, Mac^® OS X^® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows^® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista^® and Windows XP⁸Temperature:Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)Humidity:Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)Sound Level:Operating: Approx 50 dB(A)
Sleep: Approx 32 dB(A)Dimensions:Without Stand: 38.2″ x 20.7″ x 9.6″ (970 x 505 x 230 mm)Weight:Without Stand: 84 lb (38 kg)Eco Features:ENERGY STAR^® qualified
RoHS compliant
Recyclable product⁹
Epson America, Inc. is a SmartWay^® Transport Partner¹⁰Safety Approvals:UL (MET), FCC (Class A), CSA, CE, EMCCountry of Origin:IndonesiaWarranty:Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday

Printable Area and Accuracy:

Maximum Paper Width:24.4″Minimum Cut-sheet Size:8.27 x 11 (1 sheet and ASF)Minimum Paper Width:Roll: 13″/Sheet: 8.27″Maximum Printable Length:Limited by application, OS and driver/RIP used⁷

Sheet Media Handling:

Sheet Loading:Auto Sheet Feeder, up to 11.7″ wideSingle Sheet, Top-loading:Up to 24.4″ wideLeft/Right Margins:3 mm each (0.24″ total)

Roll Media Handling:

Single Roll-to-Roll / Top-loading Roll:Up to 24.4″ wideMedia Core:2” User-adjustable roll media adaptersMaximum Roll Diameter:Up to 4.3″Media Thickness:Up to 8.6 milRoll Cutting:High-speed internal rotary cutter; auto or manual⁶Roll Paper Remaining:The amount of remaining paper can be controlled from the control panel

Printer Details:

Display:4.3″ TouchscreenPrinter Language:ESC/P rasterInterfaces:SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)⁴, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct⁴

Power:

Rated Voltage:AC 110–240 VRated Frequency:50–60 HzRated Current:1.4 APower Consumption:Printing: Approx. 22 W
Ready: Approx. 8 W
Sleep: approx. 1.6 W
Power Off (Stand By): 0.2 W

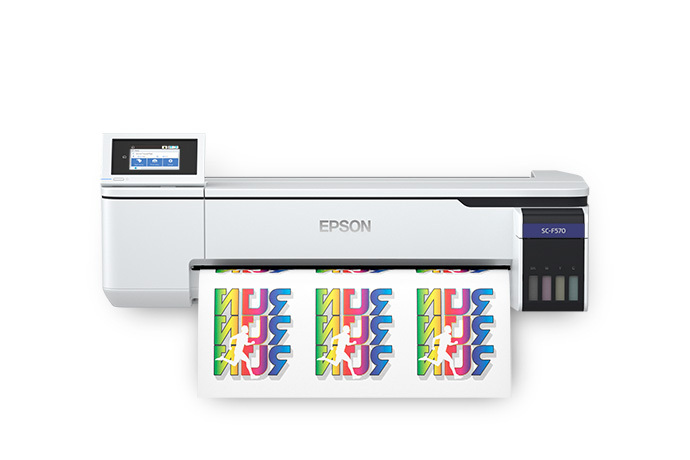

SureColor F570 Dye-Sublimation Printer - Image 1

SureColor F570 Dye-Sublimation Printer - Image 2

Click to enlarge

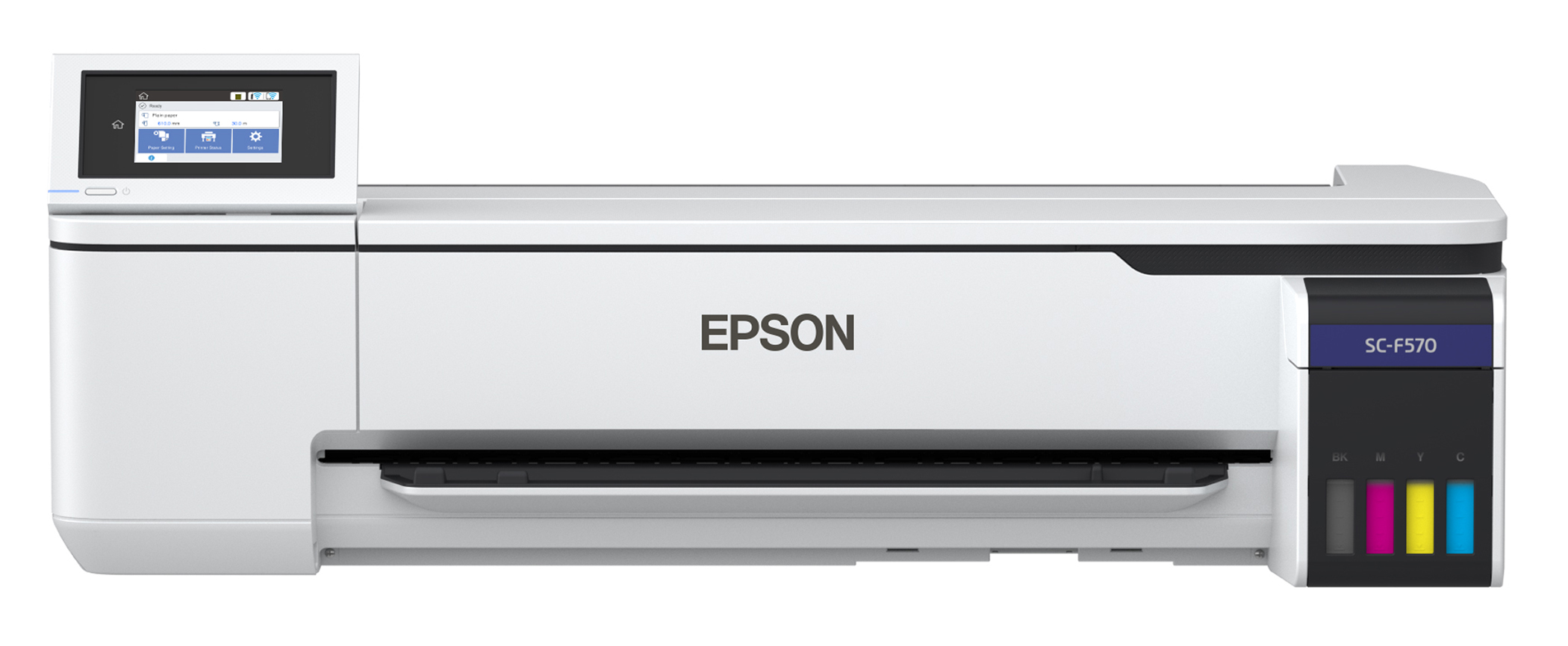

SureColor F570 Dye-Sublimation Printer

Name: SureColor F570 Dye-Sublimation Printer — North Light Color
SKU: SCF570SE
Price: 2495.00 USD
Availability: InStock

$2,495.00

The complete, 24″ solution for fast, efficient dye-sublimation printing.

Get fast, reliable dye-sub printing right out of the box with the 24″ SureColor F570. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore^® technology. A truly turnkey solution, the SureColor F570 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows^® and Mac^®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

Compare

SKU: SCF570SE Category: Dye Sublimation

Description

Additional information

Weight	84 lbs
Dimensions	38 × 23 × 10 in
