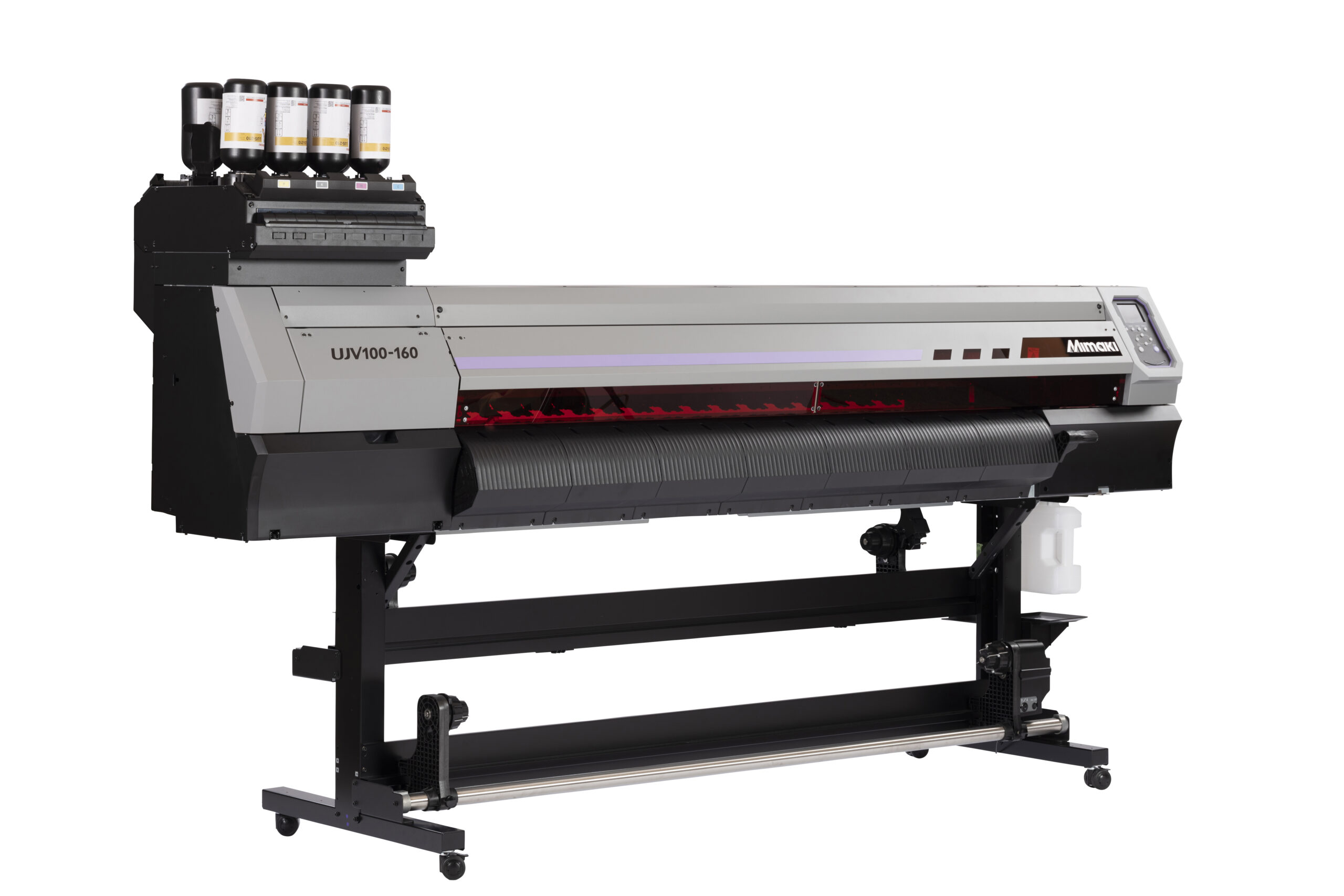

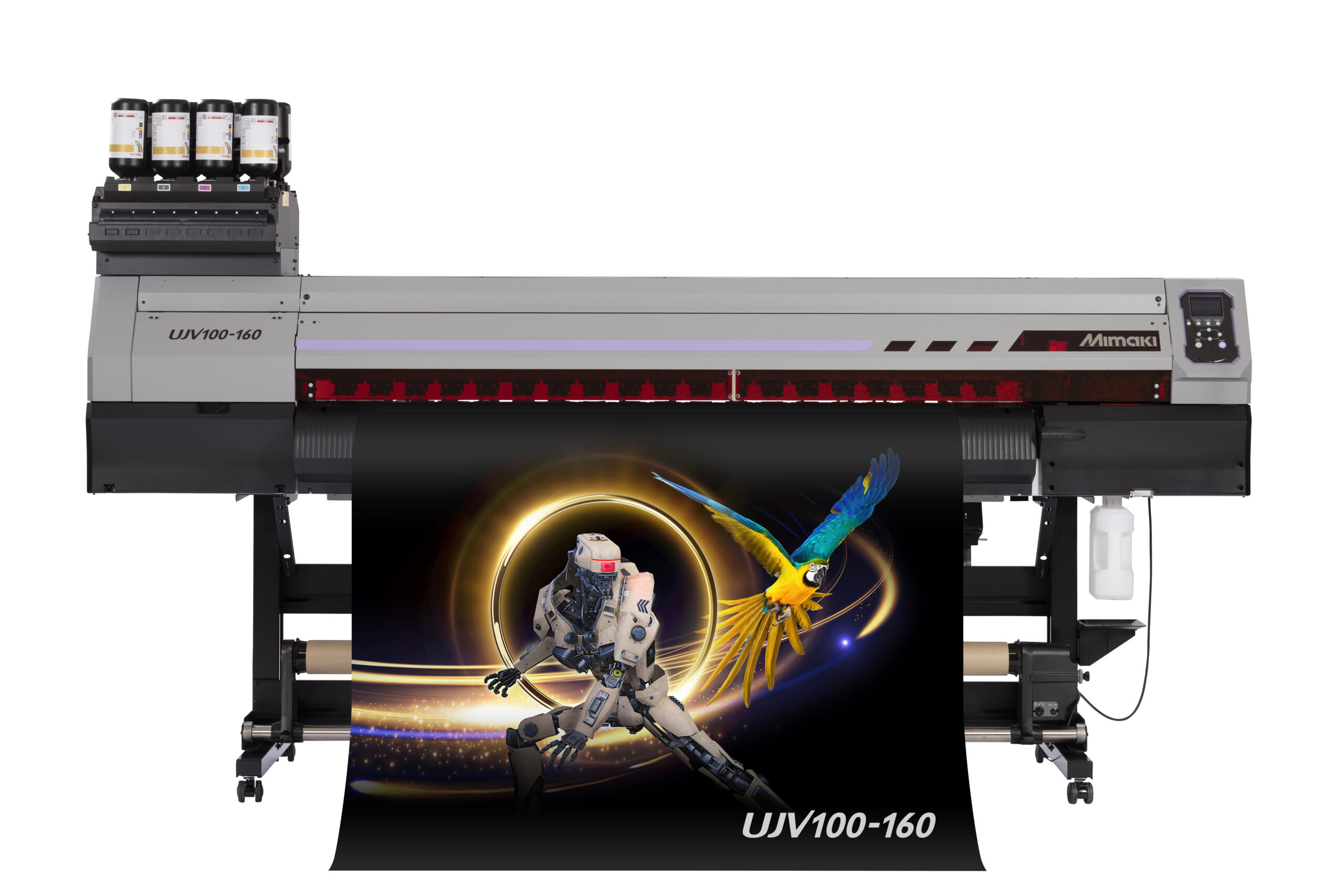

UJV100-160Plus
$16,494.00
Productivity And Versatility At An Entry-Level Price
The UJV100-160Plus is a competitively priced UV-LED roll-based printer with many productivity features found in higher-end models. It features Mimaki instant-dry UV-LED inks that adhere to a variety of media including paper, PET film, fabric, vinyl, and more -making post-printing handling and finishing effortless. With UV-LED lamps, the inks cure instantly, dramatically increasing printing speed and efficiency. This multi-purpose machine is suited for a variety of applications while keeping costs low.
- Backlit applications utilizing Multiple-layer prints
- New features allow for the reduction of ink consumption by up to 50% while maintaining the color balance of the original design.
- Instantly cured prints for shorter turnaround time and no waiting to laminate.
- With a maximum power consumption of 0.5kW, the UJV100-160Plus consumes less than 20% the power of eco-solvent and latex printers in the market (approximately)
- Eco-friendly UV-LED six color ink set in 1-liter bottles: C, M, Y, K, White, Clear
- Dot Adjustment System (DAS) automates dot position and feeding corrections, reducing manual intervention and workflow interruptions.
Our Core Technologies
Mimaki Advanced Pass System (MAPS)
Nozzle Recovery System
Nozzle Check Unit
Description
Mimaki UJV100-160 Brochure
Specifications
| Printhead | Two on-demand piezo heads, staggered layout |
| Print Resolutions | 360 dpi, 720 dpi, 900 dpi, 1200 dpi |
| Maximum Print Area | 63.4″ (1610.0 mm) |
| Maximum media width | 63.8″ (1620 mm) |
| Maximum Media Thickness | up to 1 mm |
| Maximum Media Weight | up to 45 kg |
| Ink Type | U.S. & Canada- LUS-170 Mexico, Central & South America- LUS-210: C, M, Y, K, W, CI (Clear ink: availability TBC) LUS-190 / C,M,Y,K,W,CL (Clear) |
| Ink Package Size | 1L bottle |
| Interface | Ethernet 1000 BASE-T, USB2.0 Hi-Speed |
| Power Supply |
AC100~120V/200~240V±10% 50/60Hz±1Hz |
| Operational Environment | Temperature 20° – 30°C Humidity: 35 – 65 % RH (Non condensing) |
| Dimensions (W × D × H) | 109.3 x 27.6 x 58.1″ (2775 x 700 x 1475 mm) |
| Weight | 368.2 lb (167 kg) |
| Options | Ionizer / Level foot / Lift-up block |
Inks
| UV Curable Ink (LUS170) | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| 1L Bottle | LUS17-C-BA | LUS17-M-BA | LUS17-Y-BA | LUS17-K-BA | LUS17-W-BA | LUS17-CL-BA |
Additional information
| Weight | 366 lbs |
|---|---|
| Dimensions | 108 × 30 × 49 in |
| Brand | Mimaki |
